WEL-TK500-V3
I Router Industriali TK500 evolvono
per darti sempre maggiori vantaggi
nuova Versione 3
Robusta, compatta e più economica
per le tue applicazioni Industriali
- 4G LTE – 5 Porte Ethernet, RS-232/RS-485
- Montaggio a barra DIN
- Alimentazione 9 to 36 Vdc
- Opzionale: modulo WiFi integrato o versione solo WAN (no LTE, no WiFi)
- Firewall, OpenVPN e IPsec integrati
- Compatto e robusto
- Welotec Smart EMS e VPN Security Suite

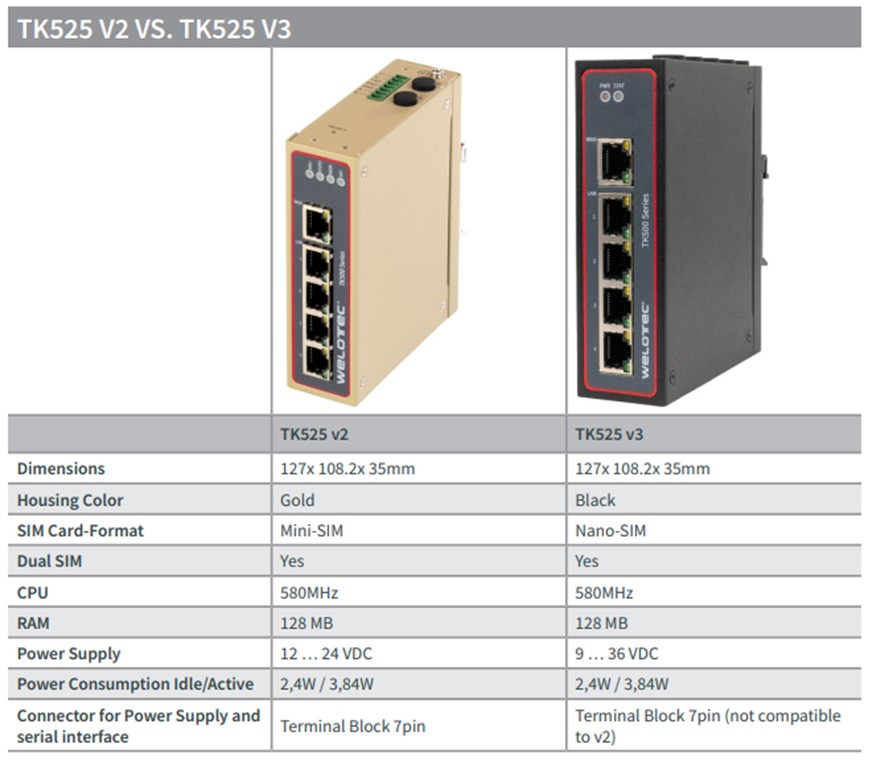

Oltre al MIMO 2x2 LTE, in cosa migliora la nuova Versione V3 rispetto alla vecchia V2?
Disponibe nelle varianti:
| Part Number | Descrizione | |
|---|---|---|
| TK525L-v3 | Router LTE [MIMO 2x2] |  |
| TK525L-W-v3 | Router LTE [MIMO 2x2] + WiFi Integrato [MIMO 2x2] |   |
| TK525W-v3 | Router WAN |  |
| TK555L-v3 | Router LTE [MIMO 2x2] (versione per USA) | |

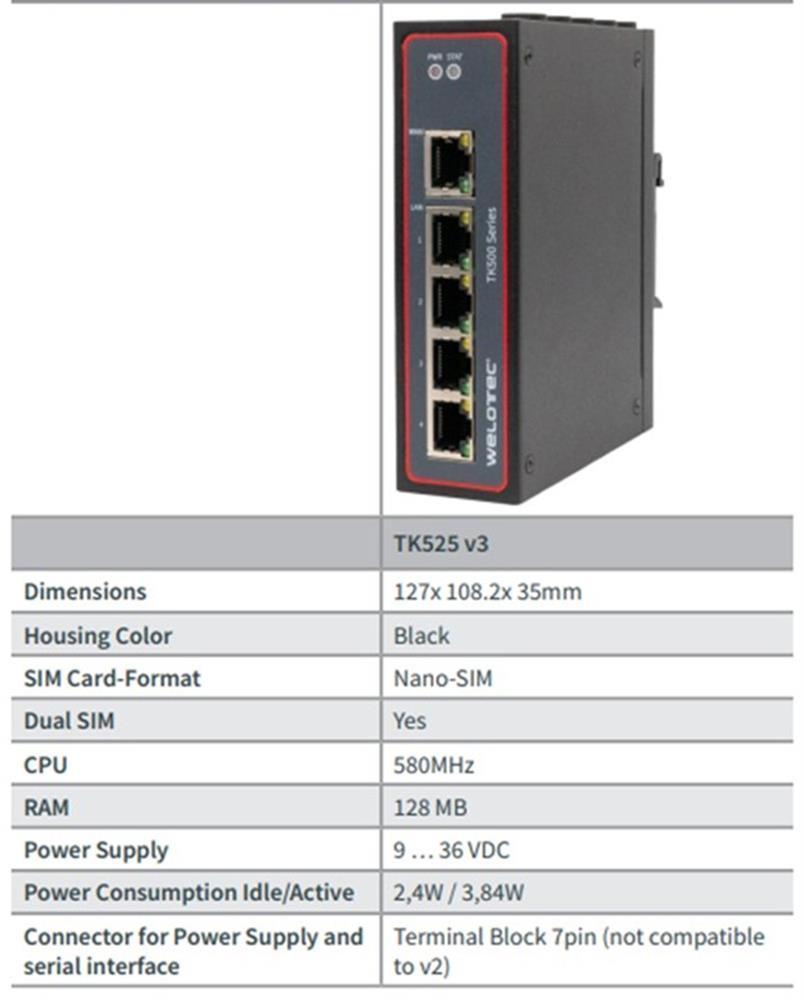

Cellular Characteristics (TK525L-v3) |
|
Cellular Chipset |
|
Quectel EC200A-EU |
|
4G Standard |
|
Cat.4 |
|
GSM Bands |
|
B3/ B8 |
|
UMTS Bands |
|
B1/ B5/ B8 |
|
LTE Bands |
|
FDD: B1/ B3/ B5/ B7/ B8/ B20/ B28 |
|
TDD: B38/ B40/ B41 |
|
Download (max) |
|
150 |
|
Upload (max.) |
|
50 |
|
SIM card |
|
Dual Nano-SIM |
|
Antenna connector |
|
2 * SMA (f) |
Cellular Characteristics (TK525L-W-v3) |
|
Cellular Chipset |
|
Quectel EC200A-EU |
|
4G Standard |
|
Cat.4 |
|
GSM Bands |
|
B3/ B8 |
|
UMTS Bands |
|
B1/ B5/ B8 |
|
LTE Bands |
|
FDD: B1/ B3/ B5/ B7/ B8/ B20/ B28 |
|
TDD: B38/ B40/ B41 |
|
Download (max) |
|
150 |
|
Upload (max.) |
|
50 |
|
SIM card |
|
Dual Nano-SIM |
|
Antenna Connectors |
|
2 * SMA (f) |
Cellular Characteristics (TK555L-v3) |
|
Cellular Chipset |
|
Fibocom FM101-NA |
|
4G Standard |
|
Cat.6 |
|
GSM Bands |
|
- |
|
UMTS Bands |
|
B2/B4/B5 |
|
LTE Bands |
|
FDD: B2/ B4/ B5/ B7/ B12/ B13/ B14/ B17/ B25/ B26/ B29/ B30/ B66/ B71 |
|
TDD: B41/ B42/ B43/ B46/ B48 |
|
Download (max) |
|
300 |
|
Upload (max.) |
|
50 |
|
SIM card |
|
Dual Nano-SIM |
|
Antenna Connectors |
|
2 * SMA (f) |
WiFi Characteristics (TK525L-W-v3) |
|
WiFi |
|
2.4 GHz IEEE802.11 b/g/n |
|
WiFi Modes |
|
Client / Access Point |
|
WiFi Security |
|
Client: WPA-PSK/ WPA2-PSK TKIP/AES |
|
Access Point: WPAPSK/ WPA2-PSK |
|
Antenna connectors |
|
2 * SMA RP |
Ethernet Characteristics |
|
Ethernet |
|
5 * 10/100 Mbps isolated Fast Ethernet RJ45 ports (1 WAN Port, 4 LAN ports with VLAN capabilities) |
Other Interfaces |
|
Serial Interface |
|
1 x RS232, 1 x RS485 |
LED |
|
TK525L-v3 |
|
Power, Status, WAN, Signal (3 LEDs) |
|
TK525L-W-v3 |
|
Power, Status, WAN, WiFi, Signal (3 LEDs) |
|
TK525W-v3 |
|
Power, Status |
|
TK555L-v3 |
|
Power, Status, WAN, Signal (3 LEDs) |
Mechanical and Environmental |
|
Dimensions |
|
127x 108.2x 35mm |
|
Weight |
|
460g |
|
Protection |
|
IP30 |
|
Housing |
|
Metal |
|
Storage Temperature |
|
-40 up to 85°C |
|
Operating Temperature |
|
-20 up to 70°C |
|
Humidity |
|
5 to 95% (non-condensing) |
Power Characteristics |
|
Voltage |
|
9 … 36 VDC – over-current protection + reverse polarity protection |
|
Standby Power |
|
120mA-200mA@12V |
|
Working Power |
|
150mA-320mA@12V |
|
Peak Power |
|
320mA@12V |
EMC Characteristics |
|
Static |
|
EN61000-4-2, level 3 |
|
Radiation Electric Field |
|
EN61000-4-3, level 3 |
|
Pulsed Electric Field |
|
EN61000-4-4, level 3 |
|
Surge |
|
EN61000-4-5, level 3 |
|
Conducted Disturbance Immunity |
|
EN61000-4-6, level 3 |
|
Shock Wave Resistance |
|
EN61000-4-12, level 3 |
|
Power Frequency Magnetic Field Resistance |
|
EN61000-4-8, horizontal / vertical 400A/m (>level 2) |
Physical Characteristics |
|
Shockproof |
|
IEC60068-2-27 |
|
Free Fall |
|
IEC60068-2-32 |
|
Vibration Resistance |
|
IEC60068-2-6 |
Certifications |
|
TK525L-v3 |
|
CE, UKCA |
|
TK525L-W-v3 |
|
CE, UKCA |
|
TK525W-v3 |
|
CE, UKCA |
|
TK555L-v3 |
|
FCC, ICES-003 |
|
Planned |
|
UL, cUL, CB, India, Australia |
Firmware Characteristics |
|
Firewall |
|
Stateful Packet Inspection, Access Control List, URL Filter |
|
VPN |
|
IPSec (IKEv1 + IKEv2), OpenVPN, WireGuard, ZeroTier |
|
Stability |
|
Watchdogs for Connectivity and Malfunction Recovery, Dual-SIM failover, Link Backup |
|
Device Management |
|
Fully Compatible with SMART EMS - OTA Firmware and Configuration Updates |
|
Remote Access |
|
Fully Compatible with VPN Security Suite for automated setup of distributed VPN infrastructures |
|
Configuration |
|
Configuration via Smart EMS, WebUI, SSH and serial console |
|
Monitoring |
|
SNMP v1/v2/v3 supporting SNMP traps (planned), local and remote System-Logs |
