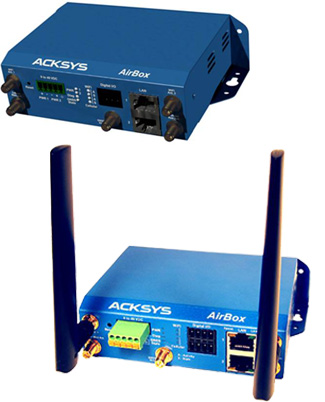

ACK-AIRBOX
.jpg)
Industry 4.0 - Dual band (2.4 / 5GHz) connectivity to objects (IIoT, PLCs,trolleys, AGVs, tablets ...).
Strong communication between machines (M2M).
Supports up to 80 clients connected simultaneously (@ 2Mbps) in AP mode
Can be integrated in electrical cabinets as in tight spaces (antenna fitted externally).
Factory wireless infrastructurs.
MIMO technology: strong radio links and high-performance roaming algorithm (< 30ms) to ensure seamless communication in motion, even in environments with very high density of AP.
• WiFi 802.11a/b/g/n (MIMO 2T2R), 2.4/5 GHz
• Optional WiFi 802.11ac (MIMO 3T3R) or LTE router + GNSS
• 2-port Ethernet 10/100/1000 (RJ45)
• Advanced security functions
• DIO : 2 solid state relays + 2 inputs
• Easy to configure : Web browser, SNMP V3, WaveManager
• Operating System : WaveOS
• Wide range power supply : +9VDC to +48VDC, redundant + PoE
• Compact case, wall or DIN Rail mounting (optional)
• Multichannel fast roaming (in client mode, 11n radio only)
AirBox embedded intelligence simplifies the network design and does not require any wireless LAN controller.
Administration is centralized via ACKSYS WaveManager software.
Network is secured thanks to AirBox high level of security (Firewall, VPN, 802.1X ...).
Two pairs of digital I/O are controllable with the SNMP protocol to operate remote equipment or read the logic state of a signal.
Available versions
:
|
AirBox/10 |
WiFi access point, client, repeater (WDS) & MESH point (802.11n), RJ45 Ethernet interface 10/100/1000 |
|
AirBox/12 |
WiFi access point, client, repeater (WDS) & MESH point (802.11n + 802.11ac), RJ45 Ethernet interface 10/100/1000 |
|
AirBox/17 |
WiFi access point, client, repeater (WDS) & MESH point (802.11n) + router LTE (World) e GPS, RJ45 Ethernet Interface 10/100/1000 Automotive E-mark ECE R10 |
| Ethernet interface | 2-port Gigabit Ethernet 10/100/1000 auto-sensing, Base TX, auto MDI/MDIX, RJ45 Ethernet interface |
| Cellular interfaces + navigation | 1 LTE radio category 4, 3GPP E-UTRA release 10, MIMO DL with Rx diversity |
| Dual SIM | |
| LTE, UMTS/HSPA+, GSM/GPRS/EDGE (worldwide) | |
| Multi-constellation GNSS (GPS, Galileo, GLONASS, Beidou). Requires an active antenna. | |
| Cellular radio data rate | 150 Mbps ↓ & 50 Mbps ↑ |
| Cellular operating | FDD LTE: B1/B3/B5/B7/B8/B20 |
| frequencies | TDD LTE: B38/B40/B41 |
| WCDMA: B1/B5/B8 | |
| GSM: 900/1800 | |
| WiFi interface | 1 radio 802.11n (MIMO 2T2R, 300 Mbps) or 2 radios 802.11n (MIMO 2T2R, 300 Mbps) + 802.11ac (MIMO 3T3R, 1.3 Gbps), 2.4 / 5 GHz, ANI (Adaptive Noise Immunity) |
| WiFi radio data rate | 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps |
| 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps | |
| 802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps) | |
| 802.11ac: MCS0-9, 3 streams (6.5 Mbps to 1.3 Gbps) | |
| WiFi operating | ISM : 2.4-2.483 GHz (up to 14 channels) |
| frequencies | UNII : 5.15-5.25 GHz (up to 4 channels |
| UNII-2 : 5.25-5.35 GHz (up to 4 channels) | |
| UNII-2 ext : 5.470-5.725 GHz (up to 11 channels) | |
| UNII-3 : 5.725-5.825 GHz (up to 4 channels) | |
| Supports DFS and TPC | |
| Output power | AirBox/10 : 2,4 GHz : 23,5 dBm (aggregate) / 5 GHz : 21 dBm (aggregate) |
| AirBox/12 : WiFi 1 : 2.4 GHz : up to 23.5 dBm (aggregate) / 5 GHz : up to 21 dBm (aggregate) | |
| WiFi 2 : 2.4 GHz : up to 23.8 dBm (aggregate) / 5 GHz : up to 22.8 dBm (aggregate) | |
| AirBox/14 : WiFi 1 : 2.4 GHz : up to 23.5 dBm (aggregate) / 5 GHz : up to 21 dBm (aggregate) | |
| LTE : GSM : up to 33 dBm | |
| Sensitivity max. | WiFi 802.11n receiver : -95 dBm in 802.11 b/g/n & -94 dBm in 802.11a/n |
| WiFi 802.11ac receiver : -94 dBm in 802.11 b/g/n, -95 dBm in 802.11a/n, -94 dBm in 802.11ac | |
| LTE WCDMA B5/B8 receiver : -110.5 dBm | |
| Radio connectors | AirBox/10 : 2 WiFi (RP-SMA) • AirBox/12 : 2 WiFi (RP-SMA) + 3 WiFi (RP-SMA) • AirBox/14 : 2 WiFi (RP-SMA) + 2 LTE (SMA) + 1 GNSS (SMA) |
| Security | Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3 |
| WiFi modes | AP, client, MESH (IEEE 802.11s), infrastructure, AD-HOC, fast roaming (less than 30 ms), WMM QoS |
| Ethernet networking | Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay |
| Ethernet routing | Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router |
| Administration | http, https, SNMP agent (V1, V2C, V3), WaveManager administration software |
| I/O | - 2 solid state relay output warnings (with configurable action), 1 Form A, 60VDC 80mA max |
| - 2 inputs for external device control 24VDC max | |
| LEDs Signaling | Radios : activity - status | Ethernet : 10/100/1000 link - activity | GPS : status | Power : on-off (x2) |
| Power supply | +9VDC to +48VDC, redundant, 5-point Phoenix connector |
| Consumption | AirBox/10 : 5.7 W typical - 9.1 W max • AirBox/12 : 10.5 W typical - 14.4 W max • AirBox/14 : TBD |
| Dimensions & weight | Compact case L : 141.2 x l : 99 x h : 35 mm, weight without accessories : /10 = 318g • /12 = 348g • /14 = 347g |
| Standards | CE (RED) & FCC certified (FCC ID : Z9W-RMB / WLE900VX) |
| Radio : • WiFi : EN 300 328 (2.4 GHz), EN 301 893 (5 GHz, DFS) • LTE : EN 301 908 [-1, -2, -13], EN 301 511, EN 303 413 | |
| EMC : • WiFi : EN 301 489 [-1], [-17] • LTE : EN 301 489 [-19], [-52] | |
| Environmental : EN61373 (shocks and vibration), EN60068 (climatic) | |
| Safety : EN 62368-1:2014+A11, EN62311 | |
| Environment | IP30 |
| Operating temperature: -20°C to +60°C , storage: -40°C à +85°C, humidity: 0% to 99% (non-condensing) |
